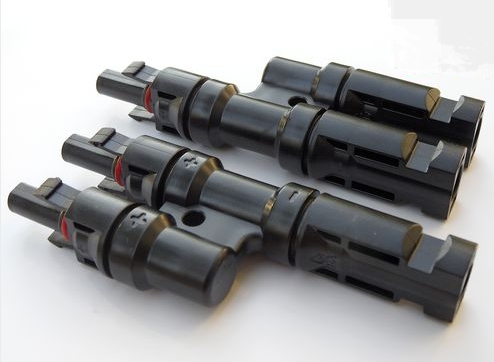

1 set (2 connectors) of paralleling MC-4 connectors. One MM/F and one FF/M
1 set (2 connectors) of paralleling MC-4 connectors. One MM/F and one FF/M

MC4-Parallel

Available in increments of 1
Quantity
Total Discount Per Unit
1
$23.78 0% $23.7800
2
$45.18 5% $22.5910
5
$107.01 10% $21.4020
$202.13 15% $20.2130
$380.48 20% $19.0240


1 set (2 connectors) of paralleling MC-4 connectors. One MM/F and one FF/M


Technical specifications from the manufacturer:

Maximum working voltage: DC1000V
Rated Current : 25A
Flame class: UL94-V0
Pollution degree: 2
Contact resistance:5mm
Shell Protection degree: IP65
Specification of Connecting Line: 4mm2
Ambient temperature range -40 to +85°C
Safety Level: class 2
Insertion force:50N
Withdrawal force:50N

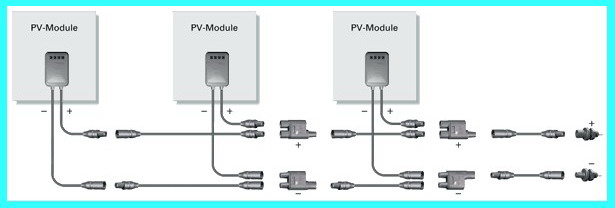

How to Parallel Solar Panels



Or use one of our combiner boxes
